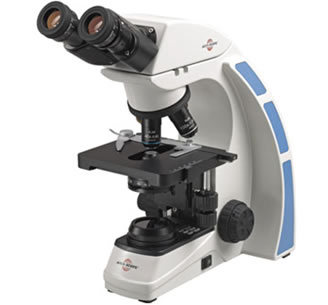

Optical System – Infinity Optical System

Viewing Heads – Siedentopf type, inclined 30o, binocular and trinocular

Eyepieces – Plan 10x, 20mm field of view, focusable, one with pointer

Nosepiece – Rear-facing quadruple

Objectives – Plan achromat, 40x and 100x oil are spring loaded

Condenser – 1.25 NA Abbe condenser with slot for sliders

Stand – Cast alloy aluminum

Illumination – 3 watt LED with variable intensity control, > 25,000 hour rated life

Focusing System – All metal gears





Optical System – Infinity Optical System

Viewing Heads – Siedentopf ergonomic tilting binocular (5o – 35o) or standard trinocular

Eyepieces – Plan 10x, 22mm field of view, focusable

Nosepiece – Rear-facing quintuple

Objectives – Plan achromat, 40x and 100x oil are spring loaded

Stage – Ceramic coated to aid sample location and resist wear

Condenser – 1.25 NA Abbe condenser

Stand – Cast alloy aluminum

Illumination – 6 volt 30 watt variable halogen

Focusing System – All metal gears

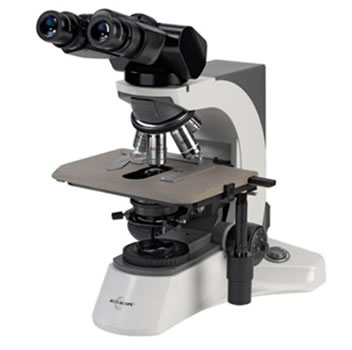

Optical System – Infinity Optical System

Viewing Heads – Siedentopf binocular inclined 30o, ergonomic tilting binocular (5o – 35o) or standard trinocular

Eyepieces – Plan 10x, 22mm field of view, focusable

Nosepiece – Side-facing quintuple

Objectives – Plan achromat brightfield and phase LWD

Stage – Fixed plain stage 160mm x 250mm; optional attachable mechanical stage with ergonomic X/Y controls

Condenser – 72mm WD with 0.3 NA

Stand – Cast alloy aluminum

Illumination – 6 volt 30 watt variable halogen transmitted light

Fluorescence – Includes Plan Fluotar objectives, three or four position filter slider

Focusing System – All metal gears

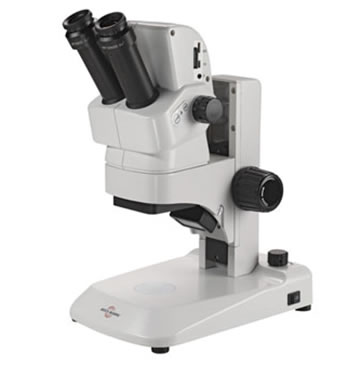

Optical System – Greenough with 0.67x – 4.5x zoom magnification

Viewing Heads – Binocular inclined 45o with optional photoport

Eyepieces – Plan 10x, 22mm field of view, focusable

Objectives – Six optional supplemental objectives available to customize for your working distance, magnification, field of view, and resolution needs

Stand, Illumination – Numerous stand, each with specific illumination characteristics, exist to customize the instrument for your working environment

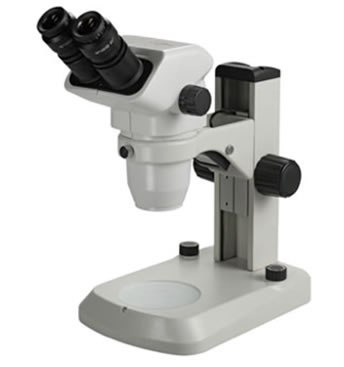

Optical System – Greenough with 0.8x – 3.5x zoom magnification, 95mm WD

Viewing Heads – Binocular inclined 60o with integrated 5 MegaPixel HD color camera

Eyepieces – Plan 10x, 22mm field of view, focusable

Stand – Cast alloy aluminum with 90mm focusing range

Illumination – 5 watt variable LED transmitted and incident with ~ 25,000 hour bulb life
